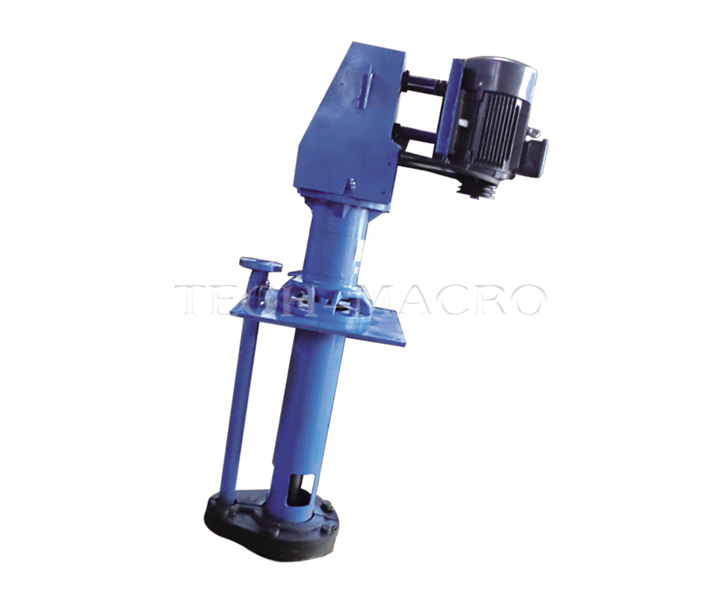

KS Series Sump Slurry Pump

Model：KS Series
Head: 4~40 m
Capacity: 17~1260 m³/h
Pump type: Vertical sump pump
Media: Slurry
Material: Metal, rubber, ceramic,etc

  Enquiry Now
1. Description:

The KS series heavy duty cantilevered sump pumps are vertical and centrifugal slurry pumps, which are suited for handling abrasive or corrosive, high density slurry with large particle size solids.

Typical Application:

● Sewage Disposal
● Agricultural field irrigation
● Flue Gas Desulphurization in thermal power plant
● Mine and metallurgy
● Chemical industry and pollution discharge
● Other industries like municipal project, coal and building materials,etc.

2. Features:

● Rational construction; easy maintenance; stable performance; reliability and durability.
● Guide bearing is added on this pump to make its operation more stable and flushing water should be fixed at the position of guide bearing.
● All parts immersed in liquid are equipped with rubber liner, which is suitable for delivering the non-edge abrasive slurry. Wet parts of the KS type pump are made of abrasion-resistant metal.
● The “L” type extended shaft series KS pump is suitable for deeper level condition.
● The pump head need to be submerged in the water when working.
● The pump has no need for shaft seal or sealing water.
● The pump can be driven by belt or coupling directly.
● The gap between the impeller and the back liner can be adjusted to ensure the pump working efficiently.

1. Operating Limits

● Discharge diameter: 40~300 mm
● Flow Capacity: 17~1260  m3/h
● Head: 4~40 m

2.  Materials:

Materials Options
Construction Standard Optional
Wet end parts (Liners,Impellers) High chrome alloy (A05, A07, A08, A09, A11, A49, A33, A61……);
Natural rubber (R26, R24, R55......);
Synthetic rubber(S01, S12, S21, S42......)
Composite ceramics
Polyurethane		 The material adopted is usually based on the detailed application, or could be according to the customer’s requirements.

3. Performance Chart:

Note: Approximate performance of clean water and only for primary model choice.

Structure
1 Shaft

2 Bearing

3 Bearing housing

4 Bearing spacer

5 Bearing

6 Adjusting shim

7 Colum

8 Strainer

9 Back liner

10 Impeller

11 Frame plate

12 Lower strainer

13 Discharge pipe

KS Series Standard Type


1 Shaft

2 Bearing

3 Bearing seat

4 Bearing spacer

5 Bearing

6 Column bolt assy

7 Flushing pipe

8 Bearing shell

9 Bearing support

10 Column

11 Strainer

12 Back liner

13 Impeller

14 Frame plate

15 Lower stainer

16 Discharge pipe
KS(L) Series Extension Type

1 Shaft

2 Bearing

3 Bearing housing

4 Bearing spacer

5 Column bolt assy

6 Column

7 Strainer

8 Back liner

9 Impeller

10 Frame plate

11 Lower strainer

12 Discharge pipe

KS Series Rubber Lined Standard Type


1 Shaft

2 Bearing

3 Bearing housing

4 Bearing spacer

5 Bearing

6 Bearing gasket

7 Flushing pipe

8 Bearing shell

9 Bearing support

10 Column

11 Strainer

12 Back liner

13 Impeller

14 Frame plate

15 Lower stainer

16 Discharge pipe

KS(L) Series Rubber Lined Extension Type

Note: Type KS pump with all metal is for abrasive duty.
          Type KS pump with elastomer protected is for acid or abrasive duty.

Three-kind Construction Of The Pump Inlet As Follows:


Standard type with strainer Suction pipe with strainer With agitator
